Eleven panels

Acoustic wall and ceiling panels.

Seven wall panels and four ceiling designs on one recycled PET felt substrate. Mix types on the same project: one vendor, one fire certificate, one colour palette.

Space

Type

Wall · Perforated

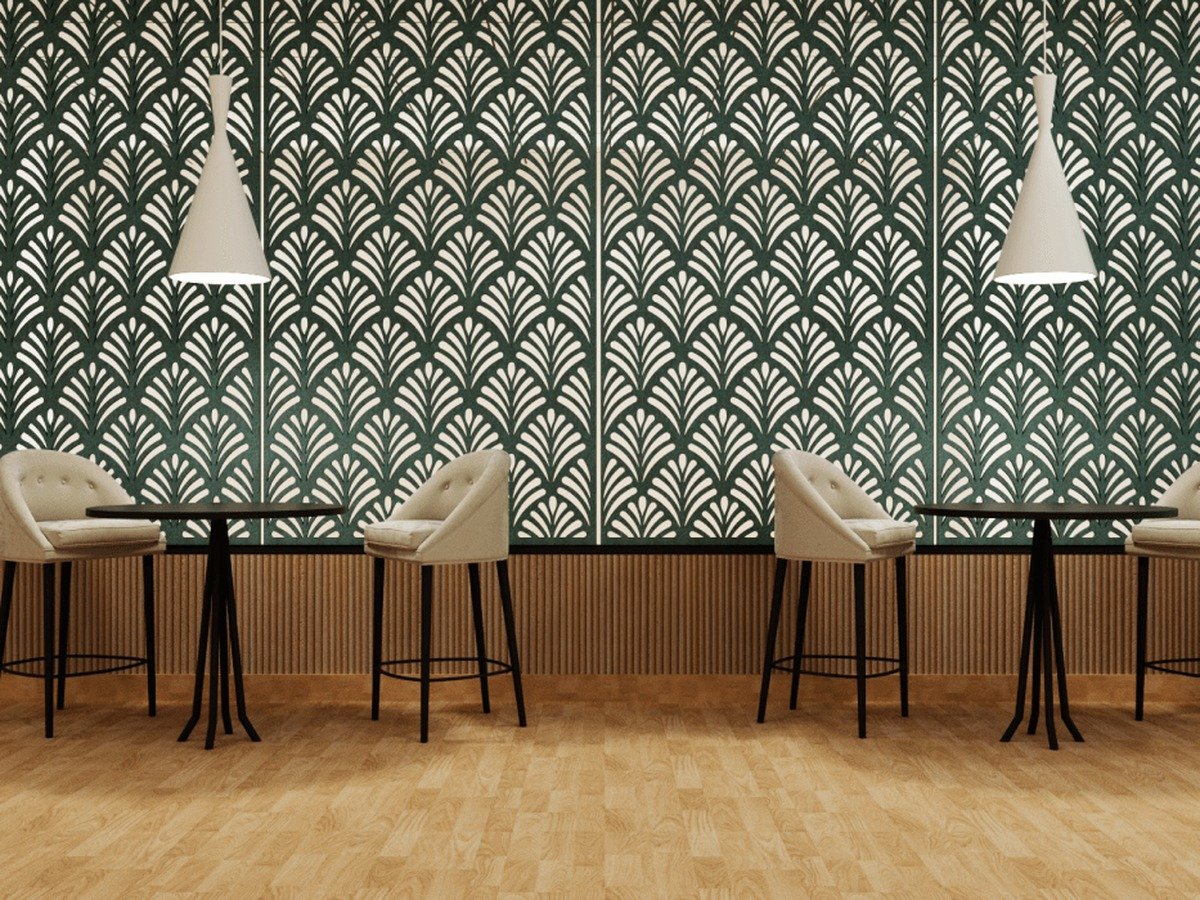

Cut Work

UTC-CW

Geometric perforations in 40+ patterns, with the widest NRC range in the U-TONE system.

NRC

0.70–0.90

Thickness

9 / 12 / 18 / 24 mm

Request sample
Wall · Fluted

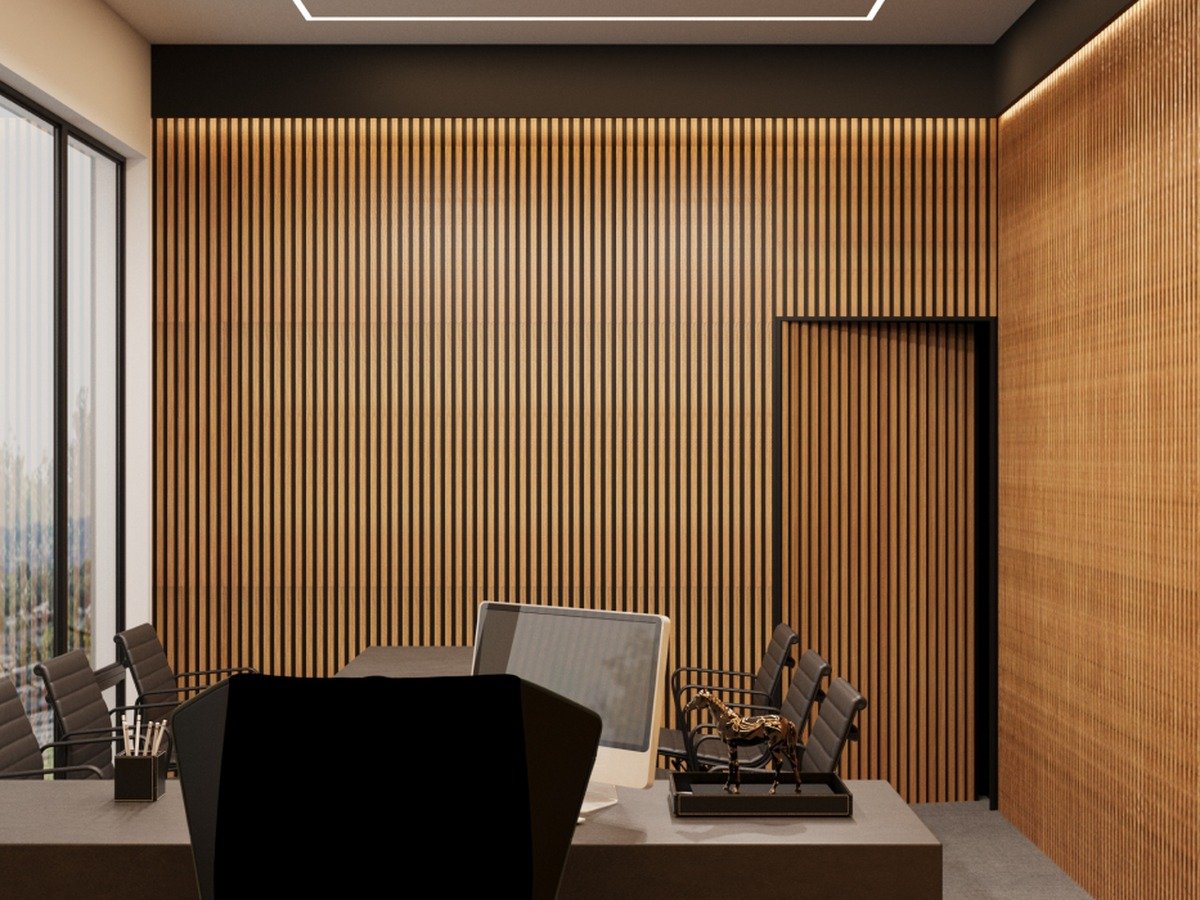

Fluted

UTC-FL

Vertical linear channels at 15 or 20 mm pitch; the specifier default for open-plan and hospitality.

NRC

0.75

Thickness

9 / 12 / 18 / 24 mm

Request sample
Wall · Grooved

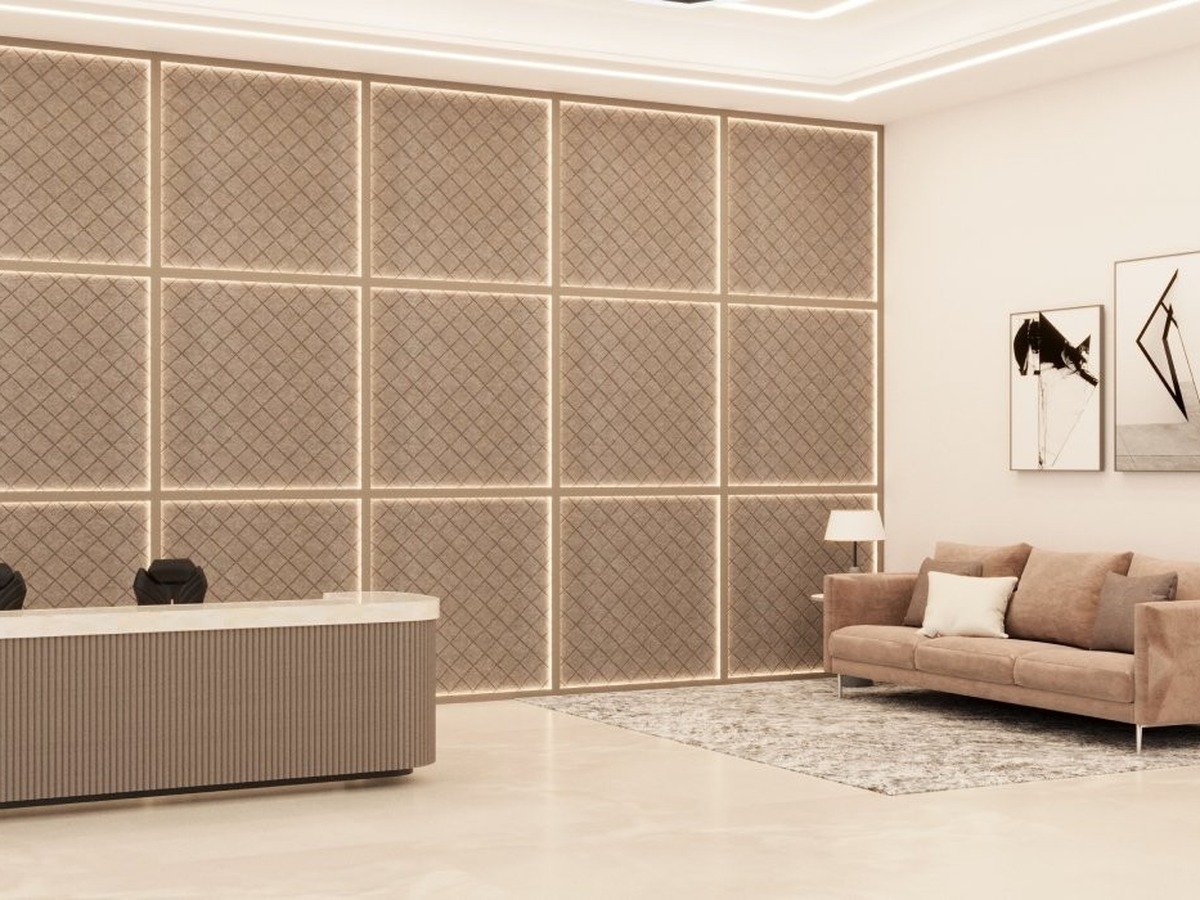

Grooved

UTC-GR

Precision horizontal grooves with stronger directionality than fluted; preferred for boardrooms and executive suites.

NRC

0.78

Thickness

9 / 12 / 18 mm

Request sample
Wall · Custom print

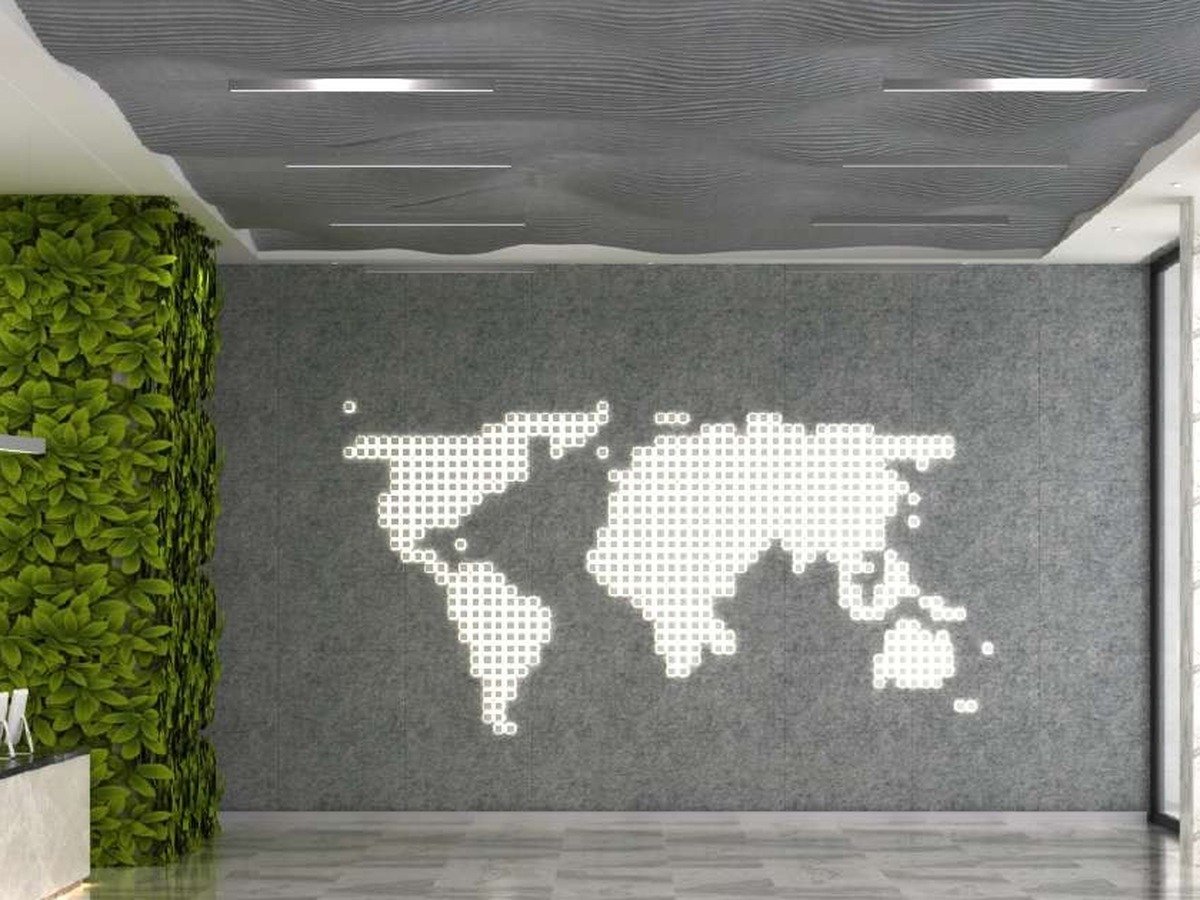

Printed

UTC-PR

Full-surface digital print on felt: murals, branding, or artwork on an acoustic substrate.

NRC

0.72

Thickness

12 / 18 mm

Request sample
Wall · Inlay

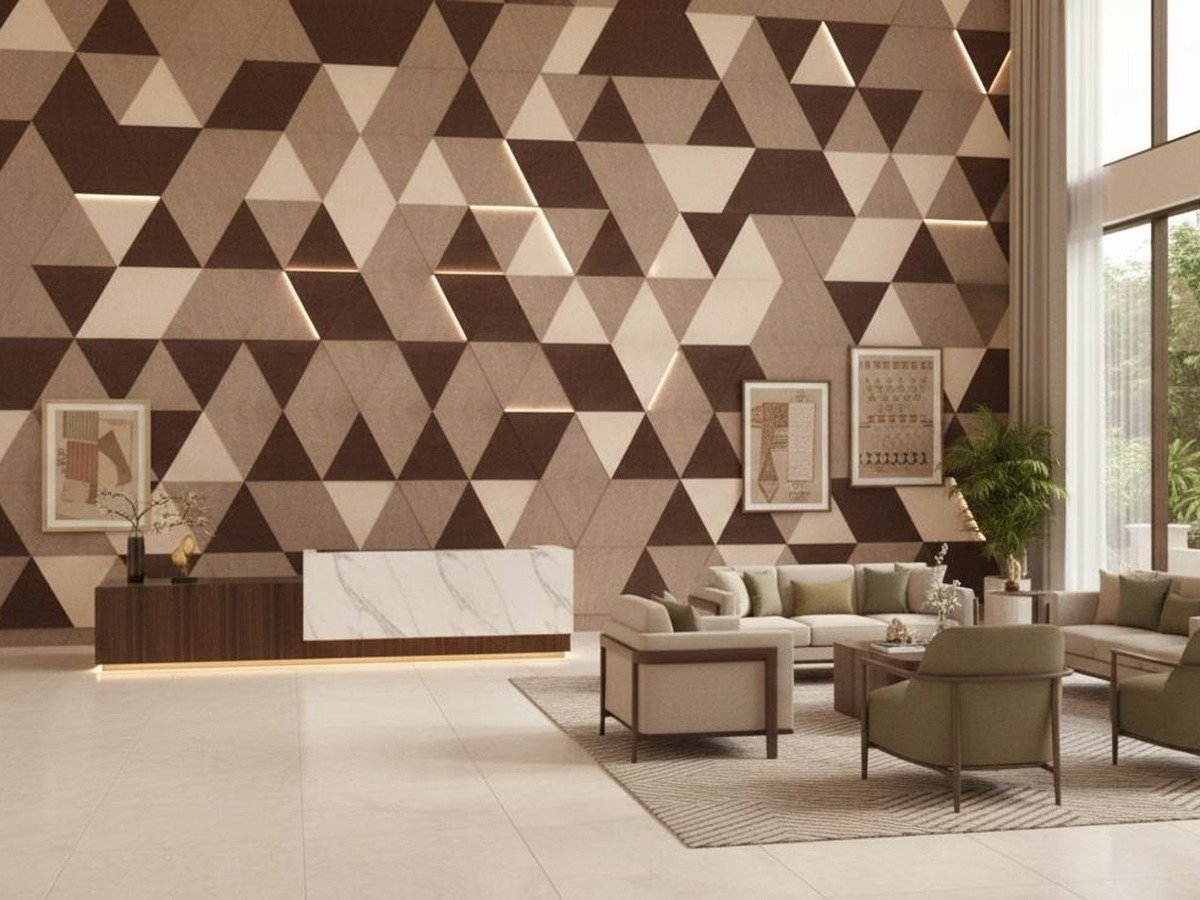

Inlay

UTC-IN

Two-colour inlay machined from the same felt substrate: logos or geometric motifs without paint or adhesive film.

NRC

0.74

Thickness

12 / 18 mm

Request sample
Wall · Three-dimensional

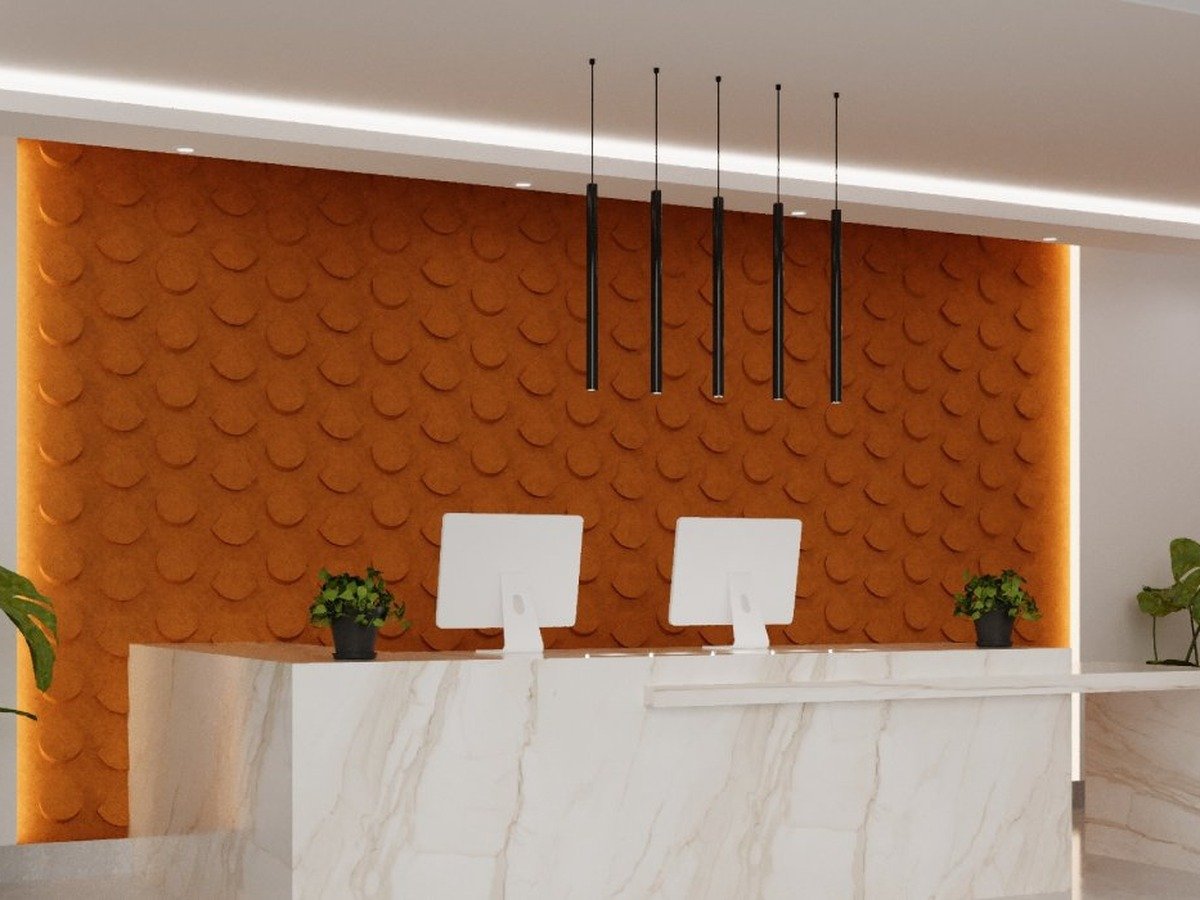

3D Wall

UTC-3D

Deep relief geometry in pyramid, wave, or faceted profiles, and the highest NRC of any U-TONE wall panel.

NRC

0.82

Thickness

36 mm

Request sample
Wall · Modular

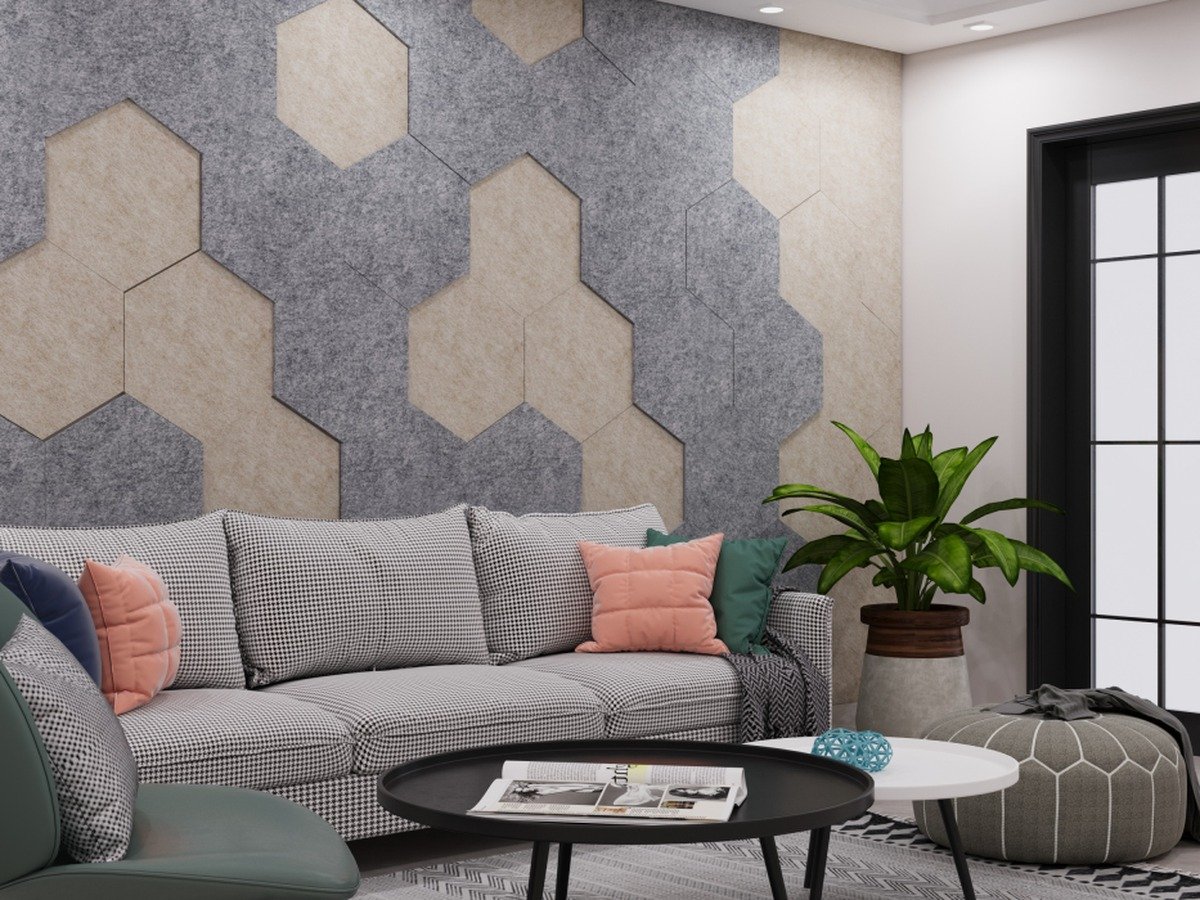

Jigsaw

UTC-JG

Interlocking modular tiles that can be rearranged or replaced individually after installation.

NRC

0.76

Thickness

12 / 18 mm

Request sample
Ceiling · Suspended

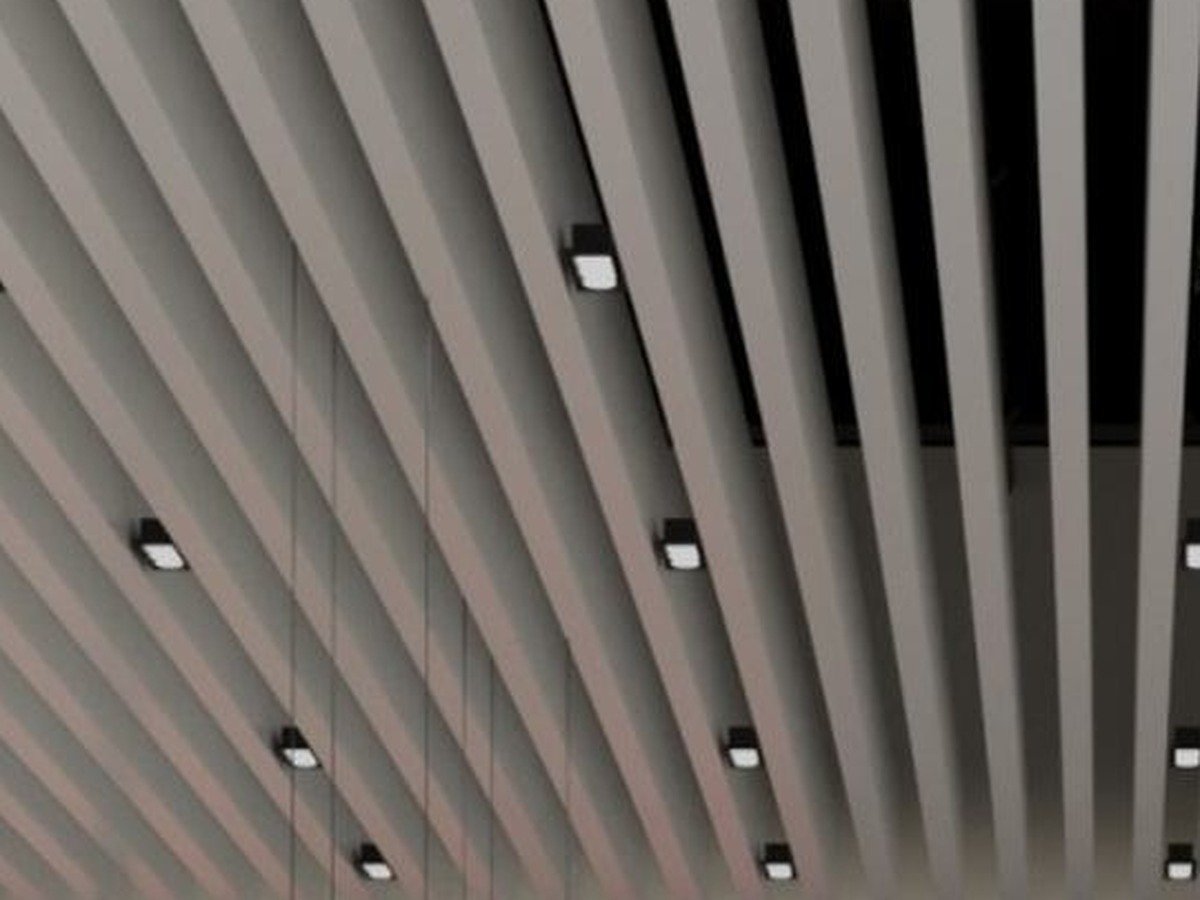

Baffle

UTC-BF

Vertical suspended fins that treat sound on both faces, effective in atriums, open-plan floors, and canteens.

NRC

0.85

Thickness

24 mm

Request sample
Ceiling · Horizontal

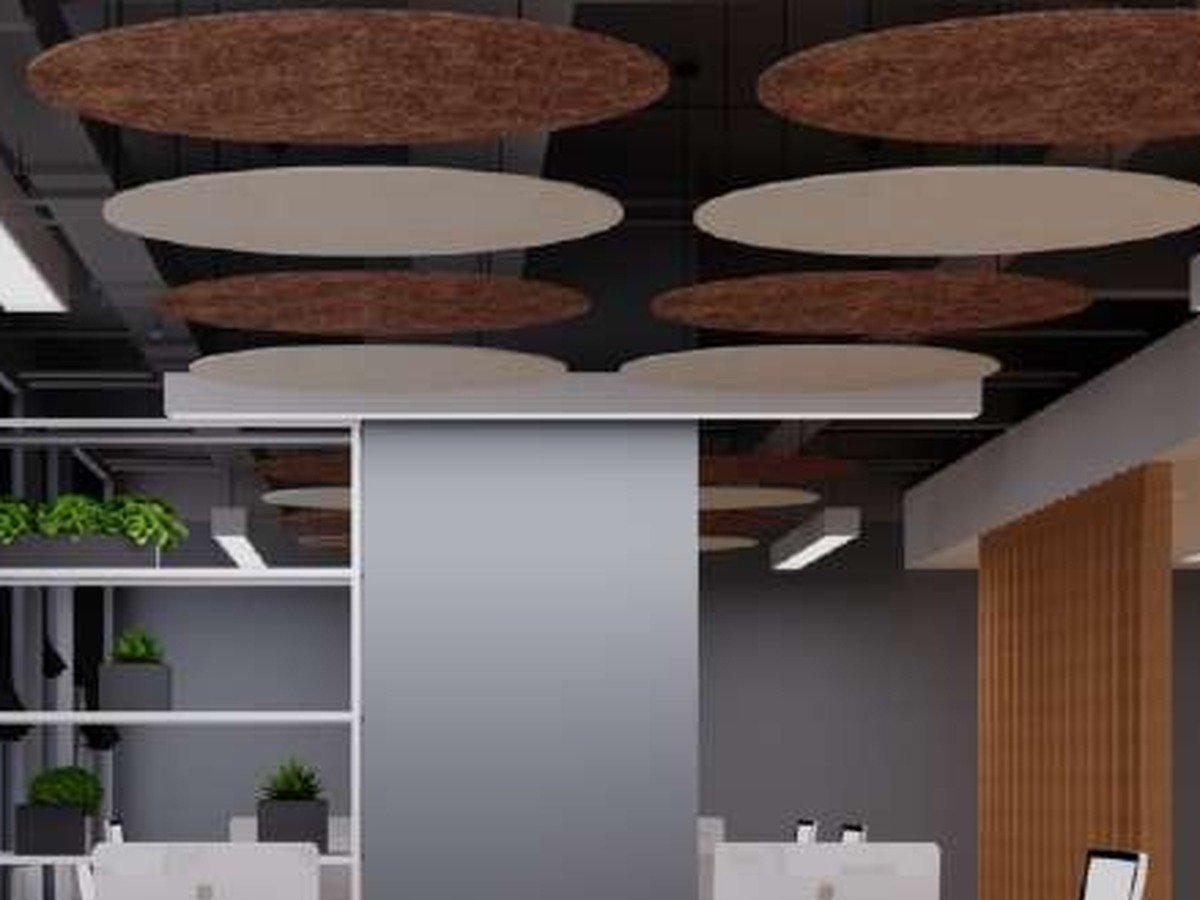

Cloud

UTC-CL

Horizontal floating ceiling panels for targeted absorption over workstations or meeting zones.

NRC

0.85

Thickness

24 mm

Request sample
Ceiling · Open cell

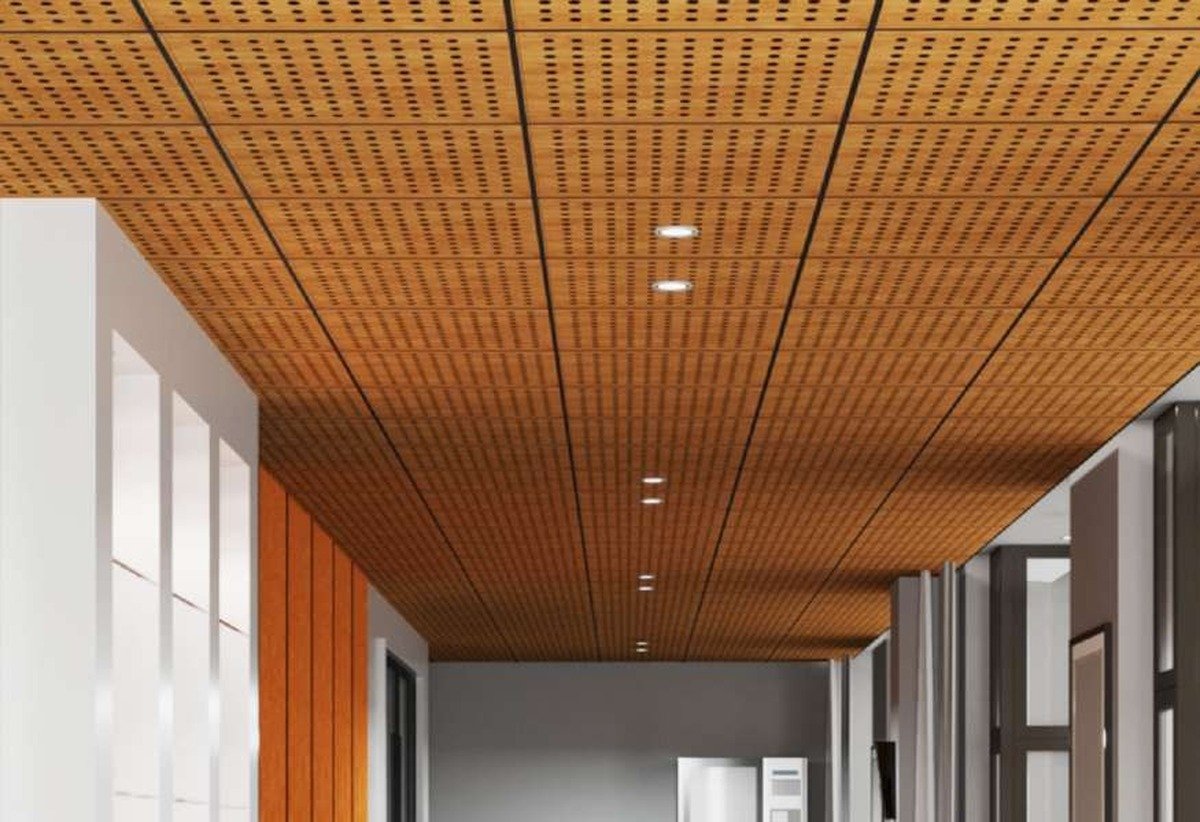

Open Cell

UTC-OC

Grid-format open cell ceiling that keeps services visible while delivering NRC 0.80 performance.

NRC

0.80

Thickness

24 mm

Request sample
Ceiling · Curved

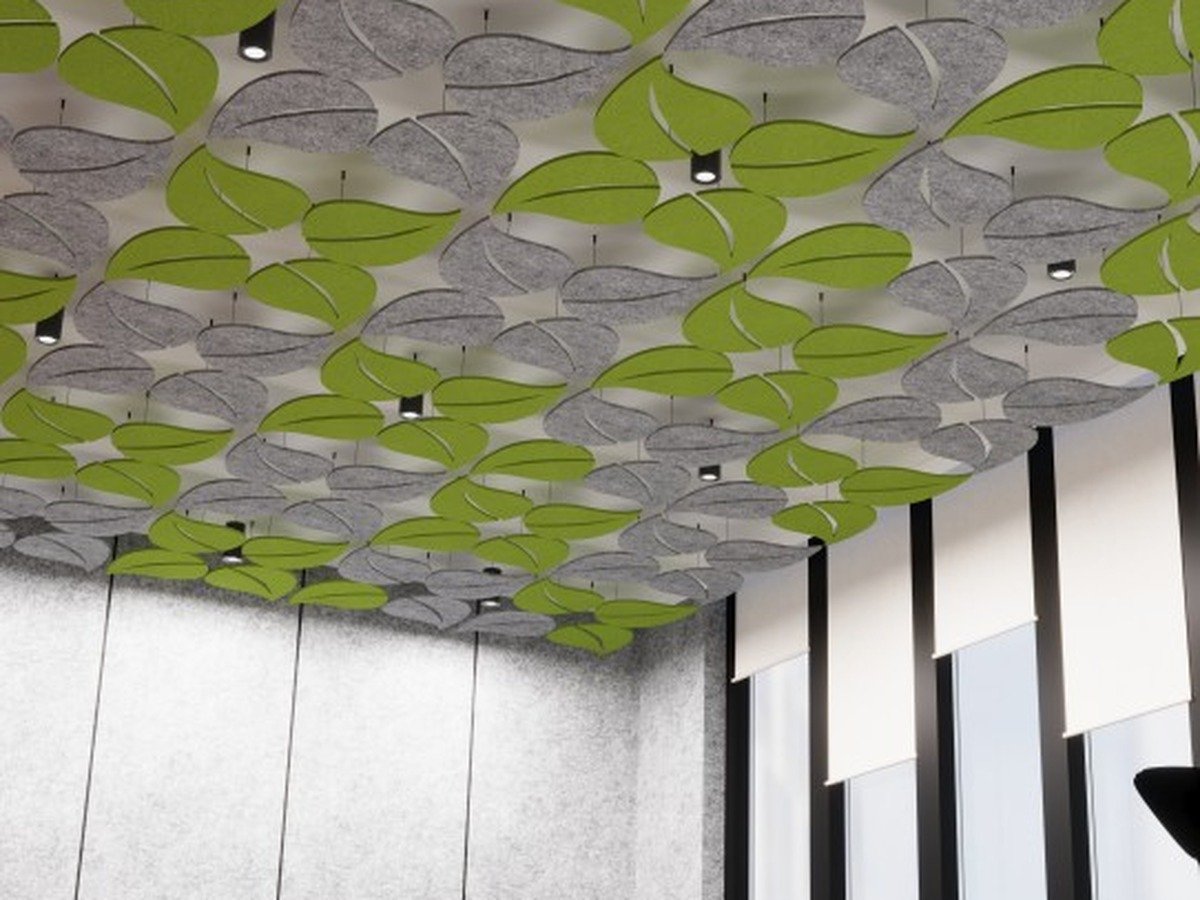

Petal

UTC-PT

Curved petal-form ceiling elements in clusters or linear runs. The strongest visual in the ceiling range, with NRC 0.85.

NRC

0.85

Thickness

24 mm

Request sample

Talk to the specification desk

Why U-TONE

Acoustic felt panels vs the alternatives.

Foam and mineral wool are the two alternatives most commonly specified against U-TONE in Indian commercial projects. Here is how they compare.

Property	U-TONE Recycled PET felt	Foam panels PU / Melamine	Mineral wool Rockwool / Glasswool
NRC range	0.70–0.90	0.45–0.65	0.55–0.80
Fire rating	Class B1, BS 476 Part 7	Typically unrated or Class C in India	Class A1 non-combustible
VOC / Formaldehyde	None: no adhesives or binders	Present in some PU variants	Binder off-gassing on install
Customisation	11 profiles, 52 colours, print, inlay	Cut to size only, no colour options	None: concealed behind facing
Finished surface	Precision-machined architectural felt	Exposed foam texture	Fabric or perforated facing required
Recyclability	100% PET recyclable	Not recyclable	Recyclable in select variants

Certifications

Specification documentation, ready on request.

All eleven U-TONE panels share one fire certificate and one acoustic test report. Specifying wall and ceiling types on the same project does not split the documentation.

Class B1

BS 476 Part 7 · Fire, every panel

ISO 354

ASTM C423 · Acoustic performance

ASTM E84

Export and US green building

GeM

Registered · Government supply

52 colours

Curated with Colour Hive.

Neutrals, terracottas, slates, deep blues. The 52-colour range was developed with Colour Hive for corporate, hospitality, and institutional interiors. Custom dyeing is available at 200 m² minimum per colour.

Arctic White

Warm White

Alabaster

Oyster

Linen

Sandstone

Driftwood

Sienna Clay

Birch

Pewter

Slate

Graphite

Charcoal

Ebony

Blush

Terracotta

Rust

Bordeaux

Sage Mist

Forest

Teal

Steel Blue

Navy

Midnight

Order a swatch deck

In situ

U-TONE panels across India.

Corporate campuses, government institutions, and hospitality venues across India. Unidus manufactures, ships, and installs each project in-house. No subcontractors.

U-TONE fluted acoustic wall panels in a corporate interior — Infosys Mumbai, Maharashtra

U-TONE grooved acoustic panels in an institutional interior — Ashoka University Sonipat, Haryana

U-TONE acoustic baffles in an open-plan office — SBI New Delhi

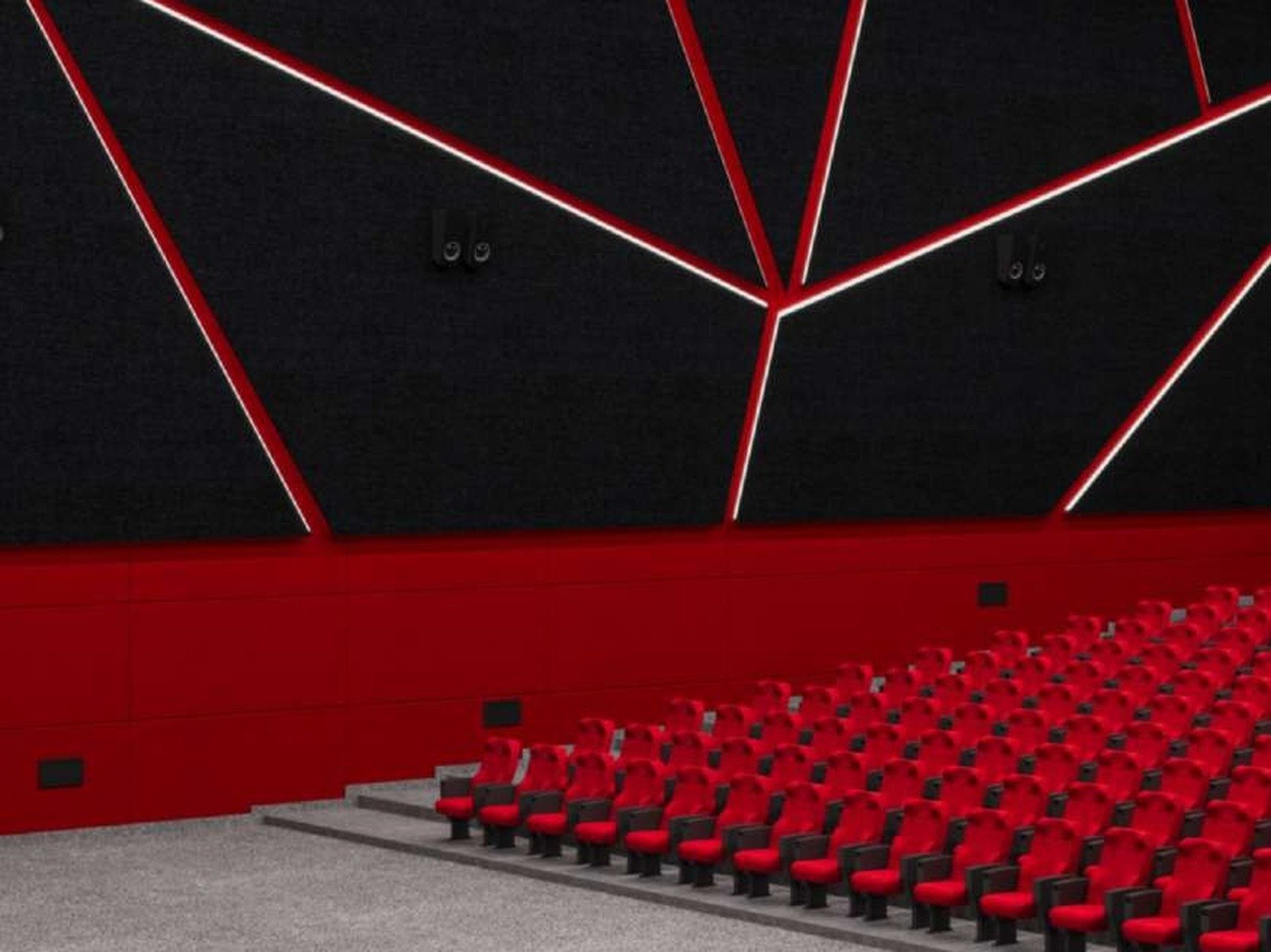

U-TONE acoustic panels installed at PVR Cinemas, Bangalore — PVR Cinemas Bangalore, Karnataka

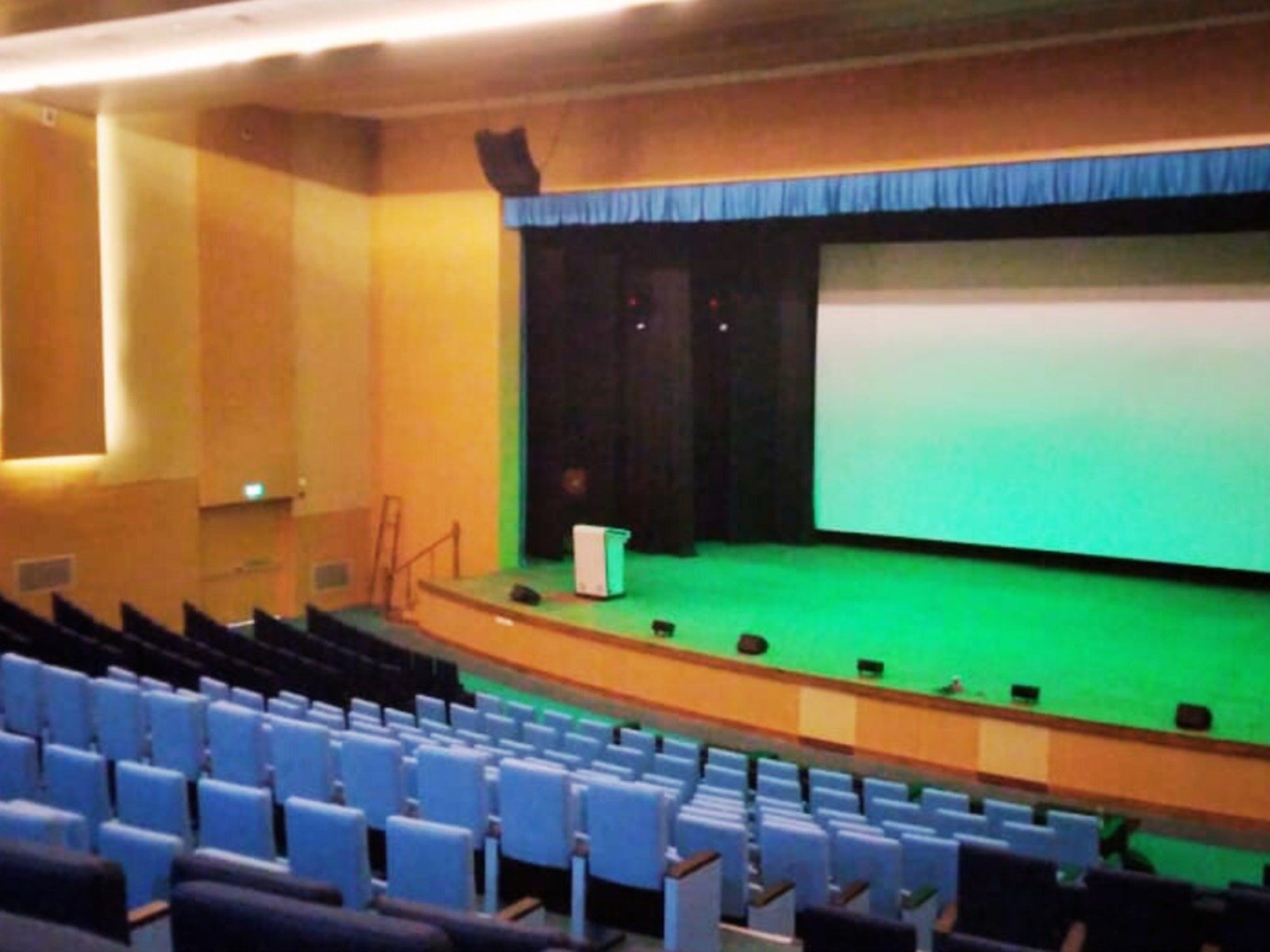

U-TONE acoustic panels installed at AIIMS, New Delhi — AIIMS New Delhi

Specified for

Specified by

What architects and designers say.

We specified U-TONE Cut Work across three floors of the campus expansion. Lead time held within the committed window and the installation team handed over clean. We have since respecified on two additional projects.

Principal Architect, Mumbai

We had three vendors on the shortlist. Unidus won partly on cost, but mainly because their fire certification and NRC data covered both the wall and ceiling panels. That simplified the specification considerably.

Associate Director, New Delhi

The project required GRIHA compliance documentation. Unidus provided recycled content data and test reports within 48 hours. No other vendor on the shortlist responded that quickly.

Sustainability Lead, Gurugram

Installation

No major civil intervention.

Unidus teams work in 16 cities. They manufacture the panels, ship to site, and handle installation. No subcontractors, no coordination overhead.

Concealed Z-clips

Aluminium Z-clips on wall battens, flush elevation, no visible fixings. Panels can be removed and repositioned without damage.

Direct adhesive

Acoustic-grade adhesive on flat prepared substrates. Fastest for large unbroken elevations, no battens, minimal thickness addition.

Magnetic system

Panels on magnetic plates embedded in the wall finish. For installations requiring maintenance access or seasonal panel rotation.

Specification

Dimension and performance.

Reference data for Cut Work (UTC-CW). NRC varies by panel profile and thickness. Download the full catalogue for complete data on all eleven panels.

Dimensions	2400 × 1200 mm · 2400 × 600 mm · 1200 × 600 mm
Substrate	Recycled polyester felt
Recycled content	88 PET bottles per m²
Density	180–200 kg/m³
NRC range	0.70–0.90 (varies by panel type and thickness)
Fire rating	Class B1 to BS 476 Part 7
Disinfectability	Fog · spray · wipe
Mounting	Concealed Z-clips · direct adhesive · magnetic
MOQ	12 m² per pattern
Lead time	4–8 weeks from sign-off

Test reports available on request. ASTM E84 available for export projects. Download the 2026 catalogue for complete data on all eleven panels.

Frequently asked

Acoustic panel questions, answered.

What is NRC and what NRC rating do these panels have?

NRC (Noise Reduction Coefficient) measures how much sound a material absorbs, on a scale of 0 to 1. U-TONE panels achieve NRC ratings of 0.70 to 0.90 depending on the panel type and thickness selected. A rating of 0.80 means the panel absorbs 80% of incident sound energy. For reference, untreated concrete absorbs roughly 0.02.

What is U-TONE made from?

U-TONE panels are manufactured from a recycled polyester felt substrate. Each square metre incorporates 88 PET bottles. The felt is dense-pressed to 180-200 kg/m³ and precision-machined to the finished profile. No adhesives, no formaldehyde, no VOC-emitting binders.

Can the panels be cut to custom sizes?

Yes. All U-TONE panels are available in standard sheet sizes (2400×1200 mm, 2400×600 mm, 1200×600 mm) and can be cut to project dimensions at our facility. Custom sizes and radius work are available from 12 m² per pattern. Tolerances are ±1 mm on cut dimensions.

How are U-TONE panels installed?

Three systems are available: concealed Z-clips (standard for most projects), direct adhesive, and a magnetic system for panels requiring removal access. All three involve no major civil intervention. Installation is carried out by trained Unidus teams in 16 cities across India.

What is the lead time for supply?

Standard lead time is 4 to 8 weeks from approved sign-off drawings. This covers manufacturing, quality inspection, and delivery to site. Sample boxes despatch within 2 working days. Fast-track options are available for urgent timelines; contact the specification desk for details.

Are these panels fire-rated?

Yes. All U-TONE panels carry Class B1 fire rating to BS 476 Part 7, meeting the requirement for Class B reaction-to-fire specified in most institutional and commercial briefs in India. ASTM E84 test reports are available for export projects or US Green Building compliance.

Are Unidus Acoustics panels available for government projects?

Yes. Unidus Acoustics is registered on the Government e-Marketplace (GeM). U-TONE panels have been specified across AIIMS campuses, SBI facilities, and government institutional projects across India. GeM product listing codes and compliant specifications are available on request.

How do I get a specification quote?

Send your project details to hi@unidusindia.com or call the specification desk at +91 88828 09694 (Monday to Saturday, 9.30 am to 6.30 pm IST). Include panel type, approximate area in m², installation city, and project timeline. We respond within one working day.
